LP802060 Lithium Polymer ion battery 1100mAh 3.7V battery 802060 liion cell baattery
LiPo Battery 1100mAh 3.7V lp802060 Polymer Lithium Ion battery 802060 this is a 1100mAh, 3.7V rechargeable Polymer battery PL802060 Lithium Ion battery
The 802060 lithium battery each cell outputs a nominal 3.7V and 1100mAh rechargeable battery
3.6V lithium battery 3.7V Lithium-Ion Rechargeable Industrial Cell battery lp802060 lipo battery
3.7V Li-ion Rechargeable battery with 1100mAh capacity
The 802060 PDA Battery 3.7V 1100mAh lithium-ion battery specifically designed for use in various portable devices.
lithium ion polymer battery LP802060
3.7V soft lithium battery 1100mah pouch cell lithium battery
Protection with PCM polymner lihium battery
802060 lithium pouch battery
1100mah 3.7Volt lithium battery
LP802060 lithium battery data sheet
| Item | Rating |
| Model | LP802060 lithium battery |
| Nominal capacity | 1100mAh lithium ion battery |
| Nominal voltage | 3.7V rechargeable battery |
| Cut-off charge voltage | 4.2V |
| Cut-off discharge voltage | 3.0V |
| Initial impedance | Max: 140mΩ |
| Weight | Approx:21.8g |
| Standard Charge | 0.2C CC(constant current) charge to 4.2V,then CV(constant voltage 4.2V)till current decline to ≤0.01C |
| Max. Constant Charging Current | 1.0C |
| Standard Discharge | Discharge at 0.2 C5A to 3.0V |
| Max. Continuous Discharging Current | 1.0C |
| Operating Temperature | Charge 0～+45℃ |
| Discharge –20～+60℃ |
| Storage Temperature | -10～+55℃≤1 month |
| -10～+45℃≤3months |
| -10～+25℃≤12months |
| Storage Humidity | 45-75%RH |

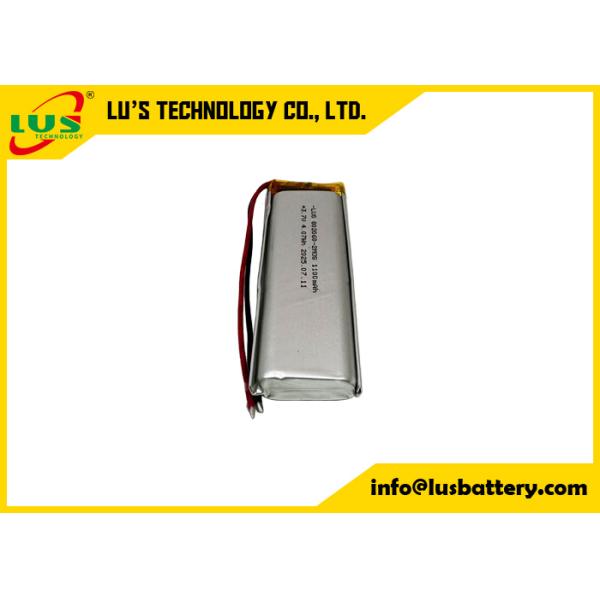

Lithium ion rechargeable battery LP802060 lipo battery picture:
More rechargeable lithium polymer battery list:
| Model | Capacity(mah) | Dimension(mm) |
| T±0.1 | W±0.5 | L±0.5 |
| 1254 | 60 | 5.4 | 12 | |
| 1040 | 35 | 4.2 | 10 | |
| 1038 | 30 | 3.8 | 10 | |
| 301030 | 70 | 3.0 | 10.0 | 30.5 |
| 301525 | 80 | 3.0 | 15.0 | 25.5 |
| 302020 | 90 | 3.0 | 20.0 | 20.5 |
| 302025 | 110 | 3.0 | 20.0 | 25.5 |
| 302030 | 120 | 3.0 | 20.0 | 30.5 |
| 303048 | 400 | 3.0 | 30.0 | 48.5 |
| 350926 | 60 | 3.0 | 9.0 | 26.5 |
| 380926 | 70 | 3.8 | 9.0 | 26.5 |
| 400808 | 18 | 4.0 | 8.1 | 8.2 |
| 400820 | 40 | 4.0 | 8.3 | 20.5 |
| 400835 | 100 | 4.0 | 8.3 | 35.5 |
| 400838 | 110 | 4.0 | 8.3 | 38.5 |
| 400909 | 25 | 4.0 | 9.1 | 9.2 |
| 400912 | 30 | 4.0 | 9.0 | 12.5 |
| 400930 | 80 | 4.0 | 9.0 | 30.5 |
| 401010 | 25 | 4.0 | 10.0 | 10.5 |
| 401012 | 35 | 4.0 | 10.0 | 12.5 |
| 401015 | 40 | 4.0 | 10.0 | 15.5 |
| 401020 | 55 | 4.0 | 10.0 | 15.5 |
| 401025 | 70 | 4.0 | 10.0 | 25.5 |
| 401030 | 90 | 4.0 | 10.0 | 30.5 |
| 401035 | 110 | 4.0 | 10.0 | 35.5 |
| 401230 | 110 | 4.0 | 12.0 | 30.5 |
| 401235 | 130 | 4.0 | 12.0 | 35.5 |
| 401730 | 150 | 4.0 | 17.0 | 30.5 |
| 402020 | 110 | 4.0 | 20.0 | 20.5 |
| 402025 | 150 | 4.0 | 20.0 | 25.5 |
| 402030 | 200 | 4.0 | 20.0 | 30.5 |
| 402035 | 230 | 4.0 | 20.0 | 35.5 |
| 402050 | 400 | 4.0 | 20.0 | 50.5 |
| 403040 | 400 | 4.0 | 30.0 | 40.5 |
| 403450 | 680 | 4.0 | 24.0 | 50.5 |
| 450833 | 110 | 4.5 | 8.3 | 33.0 |
| 400835 | 110 | 4.0 | 8.3 | 35.0 |
| 450845 | 165 | 4.5 | 8.3 | 45.0 |
| 450909 | 30 | 4.5 | 9.1 | 9.2 |
| 450912 | 35 | 4.5 | 9.0 | 12.5 |
| 500830 | 100 | 5.0 | 8.3 | 30.5 |
| 500843 | 160 | 5.0 | 8.3 | 43.0 |
| 500930 | 110 | 5.0 | 9.1 | 30.5 |
| 500935 | 130 | 5.0 | 9.1 | 35.5 |
| 500945 | 190 | 5.0 | 9.1 | 45.0 |
| 501012 | 43 | 5.0 | 10.0 | 12.5 |
| 501015 | 50 | 5.0 | 10.0 | 15.5 |
| 501030 | 110 | 5.0 | 10.0 | 30.5 |
| 501035 | 150 | 5.0 | 10.0 | 35.5 |
| 501220 | 85 | 5.0 | 12.0 | 20.5 |
| 501225 | 110 | 5.0 | 12.0 | 25.5 |
| 501230 | 120 | 5.0 | 12.0 | 30.5 |
| 501235 | 150 | 5.0 | 12.0 | 35.5 |
| 501240 | 200 | 5.0 | 12.0 | 40.5 |
| 501245 | 250 | 5.0 | 12.0 | 45.5 |
| 501525 | 150 | 5.0 | 15.0 | 25.5 |
| 501535 | 230 | 5.0 | 15.0 | 35.5 |
| 502020 | 150 | 5.0 | 20.0 | 20.5 |
| 502025 | 200 | 5.0 | 20.0 | 25.5 |
| 502030 | 250 | 5.0 | 20.0 | 30.5 |
| 502035 | 320 | 5.0 | 20.0 | 35.5 |
| 502248 | 500 | 5.0 | 22.0 | 48.5 |
| 502530 | 320 | 5.0 | 25.0 | 30.5 |
| 502535 | 400 | 5.0 | 25.0 | 35.5 |
| 502540 | 550 | 5.0 | 25.0 | 40.5 |
| 503030 | 450 | 5.0 | 30.0 | 30.5 |
| 503035 | 500 | 5.0 | 30.0 | 35.5 |
| 503040 | 600 | 5.0 | 30.0 | 40.5 |
| 503048 | 750 | 5.0 | 30.0 | 48.5 |
| 503759 | 1200 | 5.0 | 37.0 | 59.5 |
| 523450 | 1000 | 5.2 | 34.0 | 50.5 |
| 551012 | 50 | 5.5 | 10.0 | 12.5 |
| 551015 | 55 | 5.5 | 10.0 | 15.5 |
| 551145 | 250 | 5.5 | 11.3 | 45.5 |
| 551240 | 230 | 5.5 | 12.0 | 40.5 |
| 552535 | 450 | 5.5 | 10.1 | 35.5 |
| 581013 | 52 | 5.8 | 10.2 | 13.5 |
| 582728 | 400 | 5.8 | 27.2 | 28.5 |
| 601012 | 55 | 6.0 | 10.2 | 12.5 |
| 601015 | 60 | 6.0 | 10.2 | 15.5 |
| 601040 | 200 | 6.0 | 10.2 | 40.5 |
| 601043 | 250 | 6.0 | 10.2 | 43.0 |
| 601220 | 110 | 6.0 | 12.0 | 20.5 |
| 601230 | 180 | 6.0 | 12.0 | 30.5 |
| 601235 | 200 | 6.0 | 12.0 | 35.5 |
| 601435 | 280 | 6.0 | 14.0 | 35.5 |
| 601730 | 250 | 6.0 | 17.0 | 30.5 |
| 602020 | 180 | 6.0 | 20.0 | 20.5 |
| 602025 | 250 | 6.0 | 20.0 | 25.5 |
| 602030 | 300 | 6.0 | 20.0 | 30.5 |
| 602035 | 400 | 6.0 | 20.0 | 35.5 |
| 602040 | 450 | 6.0 | 20.0 | 40.5 |
| 602045 | 500 | 6.0 | 20.0 | 45.5 |
| 602530 | 400 | 6.0 | 25.0 | 30.5 |
| 602535 | 500 | 6.0 | 25.0 | 35.5 |
| 602540 | 600 | 6.0 | 25.0 | 40.5 |
| 602626 | 400 | 6.0 | 26.0 | 26.5 |
| 603030 | 500 | 6.0 | 30.0 | 30.5 |
| 603035 | 600 | 6.0 | 30.0 | 35.5 |
| 603040 | 750 | 6.0 | 30.0 | 40.5 |
| 603048 | 850 | 6.0 | 30.0 | 48.5 |
| 603450 | 1200 | 6.0 | 34.0 | 50.5 |
| 651730 | 300 | 6.8 | 17.0 | 30.5 |
| 681345 | 400 | 6.8 | 13.0 | 45.5 |
| 701230 | 220 | 7.0 | 12.2 | 30.5 |
| 701250 | 400 | 7.0 | 12.2 | 50.5 |
| 701435 | 320 | 7.0 | 14.0 | 35.5 |
| 702020 | 210 | 7.0 | 20.0 | 20.5 |
| 702025 | 300 | 7.0 | 20.0 | 25.5 |
| 702030 | 380 | 7.0 | 20.0 | 30.5 |
| 702035 | 450 | 7.0 | 20.0 | 35.5 |
| 702040 | 500 | 7.0 | 20.0 | 40.5 |
| 702530 | 500 | 7.0 | 25.0 | 30.5 |
| 702535 | 600 | 7.0 | 25.0 | 35.5 |
| 703040 | 800 | 7.0 | 30.0 | 40.5 |
| 703048 | 1100 | 7.0 | 30.0 | 48.5 |
| 751425 | 240 | 7.5 | 14.0 | 25.5 |
| 751535 | 380 | 7.5 | 15.0 | 35.5 |
| 801230 | 250 | 8.0 | 12.5 | 30.5 |
| 801350 | 500 | 8.0 | 13.0 | 50.5 |
| 802025 | 350 | 8.0 | 20.0 | 25.5 |
| 802030 | 420 | 8.0 | 20.0 | 30.5 |
| 802035 | 500 | 8.0 | 20.0 | 35.5 |
| 802040 | 650 | 8.0 | 20.0 | 40.5 |
| 802050 | 800 | 8.0 | 20.0 | 50.5 |
| 802530 | 600 | 8.0 | 25.0 | 30.5 |
| 802535 | 700 | 8.0 | 25.0 | 35.5 |
| 802540 | 800 | 8.0 | 25.0 | 40.5 |
| 803030 | 750 | 8.0 | 30.0 | 30.5 |
| 803035 | 800 | 8.0 | 30.0 | 35.5 |
| 803040 | 900 | 8.0 | 30.0 | 40.5 |
| 803048 | 1200 | 8.0 | 30.0 | 48.5 |
| 803450 | 1500 | 8.0 | 34.0 | 50.5 |
| 902025 | 400 | 9.0 | 20.0 | 25.5 |
| 902030 | 500 | 9.0 | 20.0 | 30.5 |
| 902035 | 600 | 9.0 | 20.0 | 35.5 |
| 902040 | 700 | 9.0 | 20.0 | 40.5 |
| 902535 | 800 | 9.0 | 25.0 | 35.5 |
| 101550 | 800 | 10.0 | 15.0 | 50.5 |
| 102050 | 1000 | 10.0 | 20.0 | 50.5 |
| 102530 | 800 | 10.0 | 25.0 | 30.5 |
| 102540 | 1100 | 10.0 | 25.0 | 40.5 |
| 103040 | 1200 | 10.0 | 30.0 | 40.5 |
| 103048 | 1650 | 10.0 | 30.0 | 48.5 |
| 103450 | 2000 | 10.0 | 34.0 | 50.5 |
Li-Polymer battery Product Advantages:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 or 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same
|
|
